Description

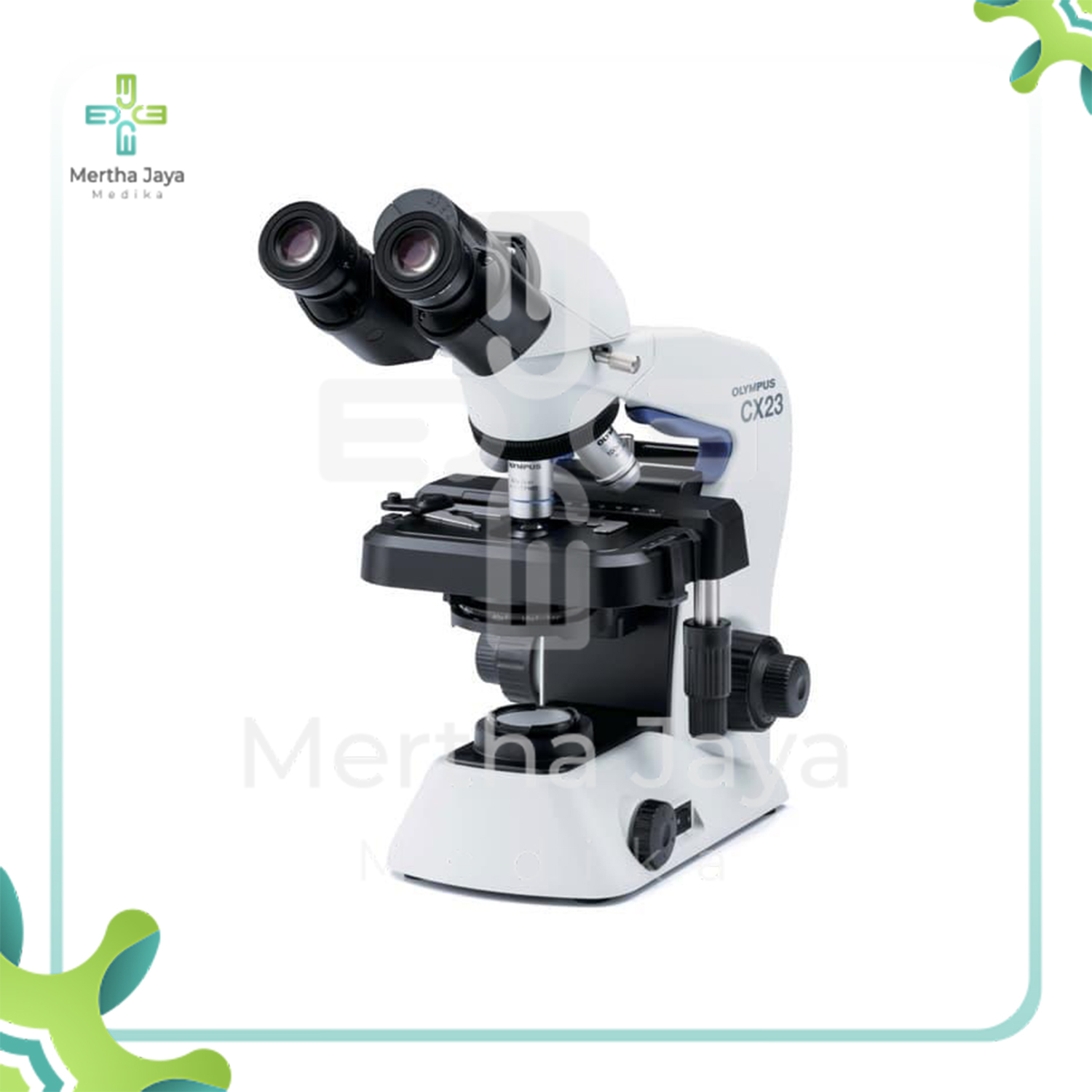

Mikroskop/Microscope Binokular Olympus CX 23
* Model : CX 23
* Body : Aluminium die-casting metal frame, Protective covering
* Optical System : Infinity optical system
* Illumination system : Built in trasnmitted illumination system, LED Power Consumption 0.5 W (nominal value)
* Focusing mechanism : Stage height movement (Coarse movement stroke : 15 mm), coarse adjustment limit stopper.
* Torque adjustment for coarse adjustment knob, Fine focus knob (minimum adjustment gradations: 2.5 m)
* Revolving nosepiece : Fixed quadruple nosepiece
* Stage :
– Wire movement mechanical fixed stage
– Traveling range : 76 mm (X) x 30 mm (Y)
– Specimen holder
– Specimen position scale
* Observation tube : 30 inclined binocular tube. Inteupilary distance adjustment
* Range : 48-75 mm Eyepoint adjustment : 370.0 432.9 mm
* Objectives : Plan achromat, (anti-fungus) 4x NA:0.10 W.D.: 27.8 mm 10x NA: 0.25 W.D.:8.0 mm 40x NA:0.65 W.D.:0.6 mm
100xOil NA:1.25 W.D.:0,13 mm (CX23LEDRFS1 only) 10.
Eyepiece (10x) : Field Number (FN) : 20 (anti-fungus) br/ Optional
* Accessories : Reflection mirror (CH20-MM) 15x eyepiece (WHSZ 15X-H: FN 12, anti-fungus)
* Diverse, User-Friendly Design Combined with Outstanding Optical Performance.
